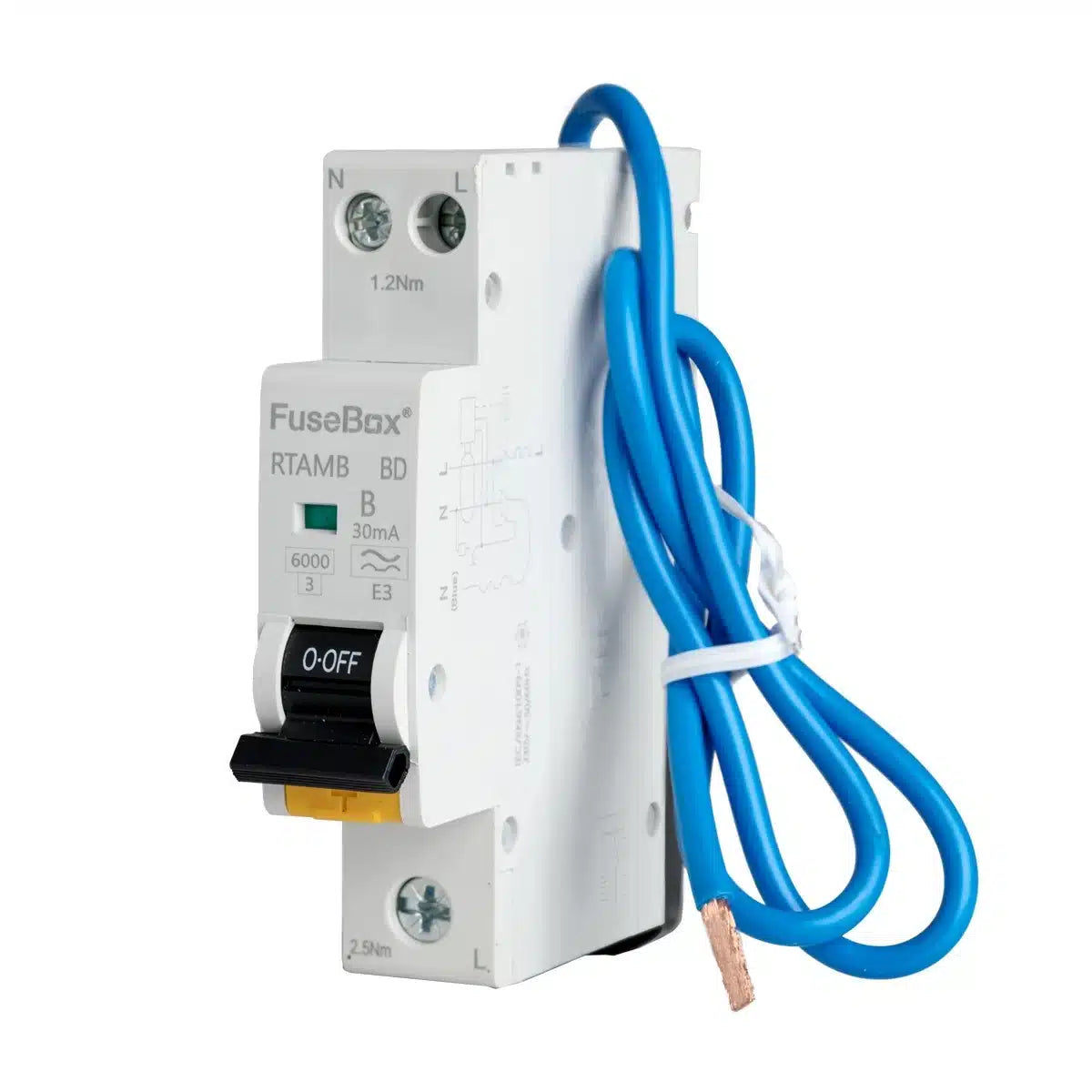

Mini RCBO 6A 1 Pole and Neutral 30mA 6kA Type A Bidirectional Switch for Small Panels and DIY Projects

The MINI 6A B RCBO 1P+N (SW) 30mA 6kA TYPE A BI-DIRECTIONAL is a compact protective device that combines residual current protection with overcurrent protection for single-phase circuits. Designed for small panels and DIY electrical projects, it delivers reliable leakage and short-circuit protection in a space-saving package.

• Current Rating: 6 A (1P+N) with an integrated switch for easy isolation
• Residual Current Sensitivity: 30 mA to protect people from electric shock on branch circuits
• Pole Configuration: 1P+N with SW (switch) configuration for straightforward mounting and operation
• Trip Type: Type A, detects AC residual currents and pulsating DC components from electronics
• Breaking Capacity: 6 kA, capable of safely interrupting fault currents in typical installations
• Bi-Directional Tripping: Trips regardless of the direction of the leakage current
• Form Factor: MINI compact design to save panel space in tight electrical enclosures
• Ideal Applications: Residential circuits, lighting and socket outlets, and small commercial panels with electronic loads

With the MINI 6A RCBO, you gain comprehensive protection in a compact package. The 30 mA sensitivity provides reliable personal protection against leakage, while the 6 kA breaking capacity ensures safe disconnection under fault conditions. Type A protection is well-suited for modern electronics and power supplies that generate pulsating DC leakage, reducing nuisance trips while maintaining safety. The 1P+N with a built-in switch simplifies installation and maintenance, and the space-saving MINI form factor makes it an excellent choice for constrained distribution boards and retrofit projects. This bi-directional RCBO delivers dependable, upfront protection for both people and equipment in everyday electrical setups.
