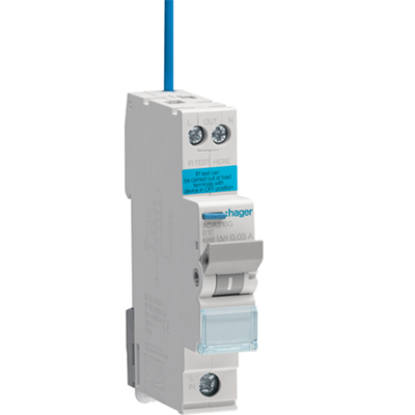

10A Single Pole B Curve RCBO Type A 6kA Residual Current Breaker With Overcurrent Protection

A compact 10A single-pole B-curve RCBO with Type A residual-current detection, designed for reliable leakage and overcurrent protection on individual circuits. It’s an ideal upgrade for residential and small commercial installations where space is limited and safety is a priority.

• Current rating: 10A nominal load current for lighting and small-appliance circuits.
• Residual-current type: Type A detection, sensitive to AC residual currents and pulsating DC from common electronic loads.
• Tripping curve: B-curve overcurrent protection provides fast response to short-circuit faults.
• Breaking capacity: 6kA withstand capability at rated voltage for fault-current safety.
• Pole configuration: Single Pole (1P) RCBO, suitable for monitored live conductors with neutral.
• Mounting: DIN-rail compatible, designed for easy installation in standard distribution boards.
• Integrated protection: Combines residual-current (RCD) and overcurrent (MCB) protection in one unit for streamlined safety.

This RCBO helps you protect people and property by quickly disconnecting a circuit when leakage is detected, reducing the risk of electric shock and electrical fires. The Type A sensitivity covers common electronic devices like LED drivers, chargers, and switched-mode power supplies, while the 10A rating is well-suited for lighting circuits and outlet runs. The 6kA breaking capacity ensures robust performance against higher fault currents, and the compact DIN-rail form makes it an efficient upgrade for existing boards without sacrificing space or layout flexibility.
