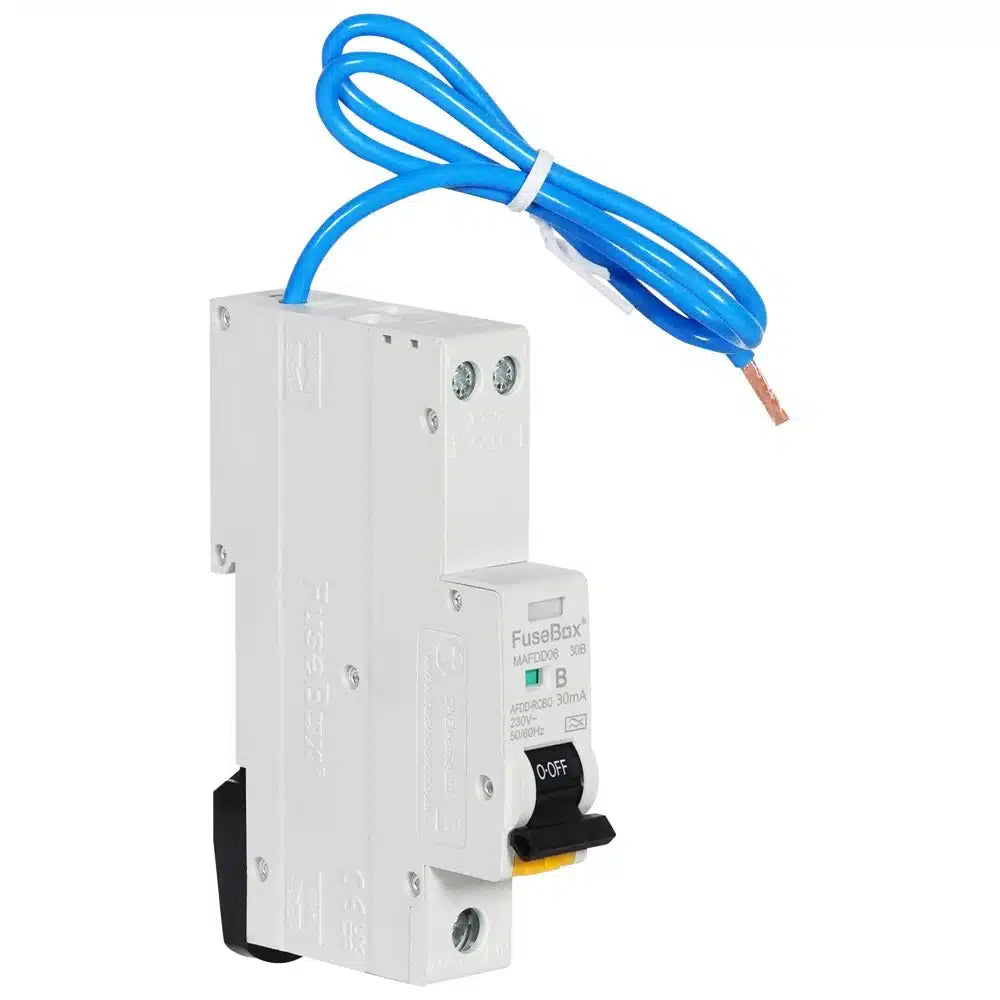

Mini AFDD RCBO 20A B 30mA 1P And N Type A Arc Fault And Residual Current Protective Device SW

Meet the MINI AFDD RCBO 20A B 30mA 1P+N (SW) TYPE A — a compact protective device that combines arc-fault detection with residual-current protection for modern electrical installations. Designed for spaces where safety matters and enclosure real estate is at a premium, it delivers reliable protection without taking up unnecessary room.

• Nominal current rating: 20 A, providing overcurrent protection for common lighting and small-appliance circuits.
• Residual current sensitivity: 30 mA leakage protection to help prevent electric shock on exposed conductors.
• Arc Fault Detection (AFDD): integrated AFDD capability detects dangerous arcing patterns and interrupts the circuit to reduce fire risk.
• Residual-current type: Type A detects both AC residual currents and pulsating DC, covering a wide range of modern loads.
• Trip curve: B-type instantaneous trip for rapid response to overcurrents while minimizing nuisance trips on typical loads.
• Configuration: 1P+N with an integrated switch (SW) for quick manual isolation during maintenance or testing.
• Compact design: MINI form factor designed to fit in space-constrained distribution panels without compromising protection.

This device provides a practical, all-in-one safety solution for residential and small commercial installations. By pairing arc-fault detection with reliable leakage protection, it helps guard people and equipment against both electric shock and arc-related fire risks. The Type A residual-current detection is suitable for a wide range of modern electronics and loads, while the built-in switch makes field maintenance straightforward. Use this MINI AFDD RCBO in circuits where quick, confident protection is essential and space is at a premium.
