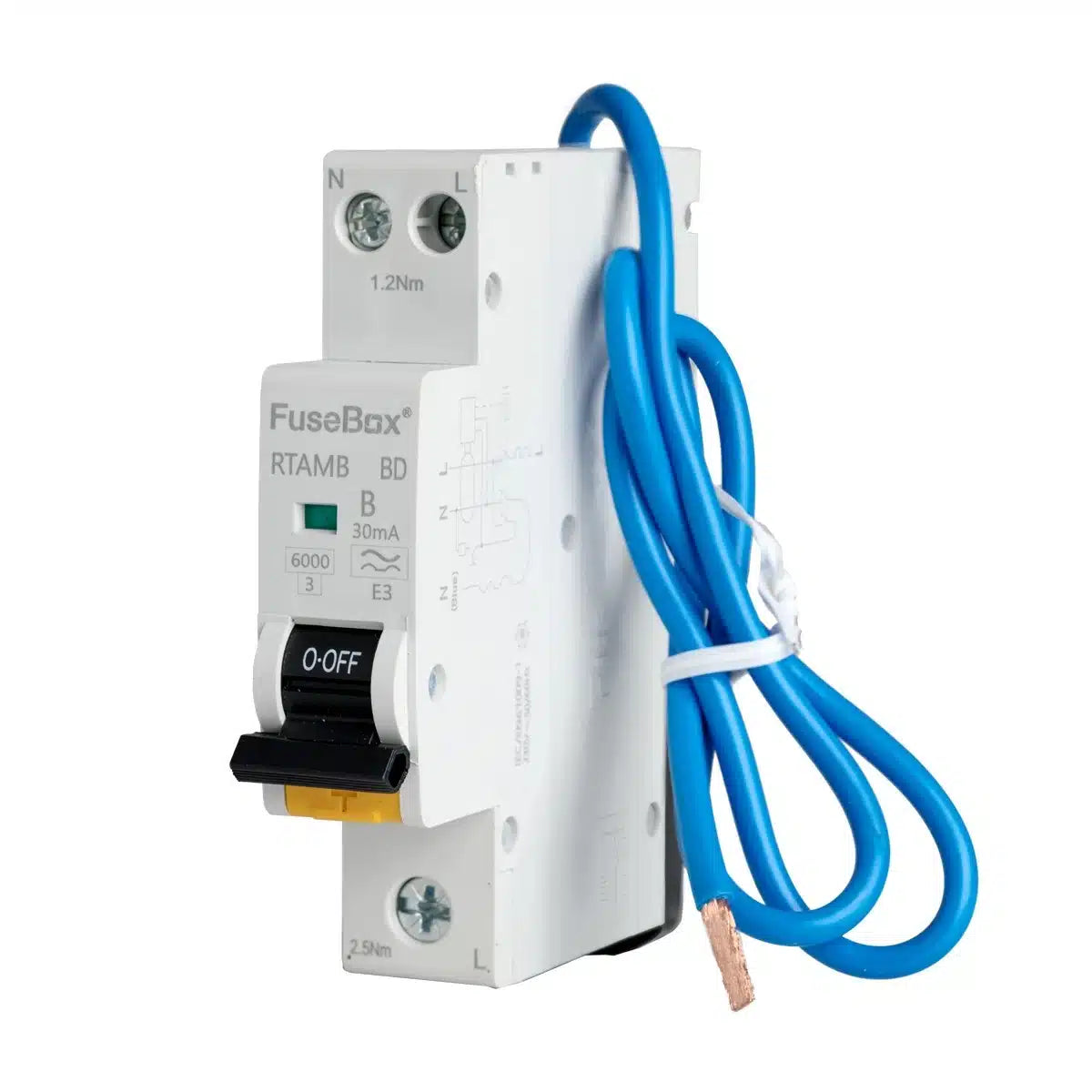

Mini 25A B RCBO 1P Plus N SW 30mA 6kA Type A Bi Directional Residual Current Breaker With Over Current Protection

Introducing the MINI 25A B RCBO 1P+N (SW) 30mA 6kA TYPE A BI-DIRECTIONAL — a compact residual current circuit breaker with overcurrent protection designed for single‑phase circuits. It combines precise leakage protection with reliable overcurrent disconnection, making it ideal for small distribution boards and modern household installations.

• Current Rating: 25A nominal current, suitable for typical lighting and apartment circuits.
• Residual Current Sensitivity: 30 mA to quickly detect earth leakage and help prevent shocks and electrical fires.
• Overcurrent Curve: B-type, providing fast response to short-circuit and overload events common in residential wiring.
• Residual Current Type: Type A, capable of sensing AC leakage and pulsating DC components from modern electronics.
• Bi-Directional Protection: Detects leakage current in both directions for robust safety across wiring configurations.
• Breaking Capacity: 6 kA (Ics), ensuring safe interruption under fault conditions.
• Configuration: 1P+N with an integrated switch (SW) for straightforward manual isolation and testing.
• Form Factor: MINI compact design, tailored for space-saving installation in compact distribution boards.

This RCBO protects people and equipment by shutting off power when leakage is detected and by interrupting overcurrent events, reducing the risk of electric shock, equipment damage, and fire hazards. The Type A, 30 mA sensitivity is particularly suited to modern homes packed with electronics and power supplies, while the bi-directional detection adds an extra layer of safety in diverse wiring layouts. With its small footprint and easy manual isolation, it’s well suited for upgrading existing panels or installing in new, space-conscious electrical enclosures.
