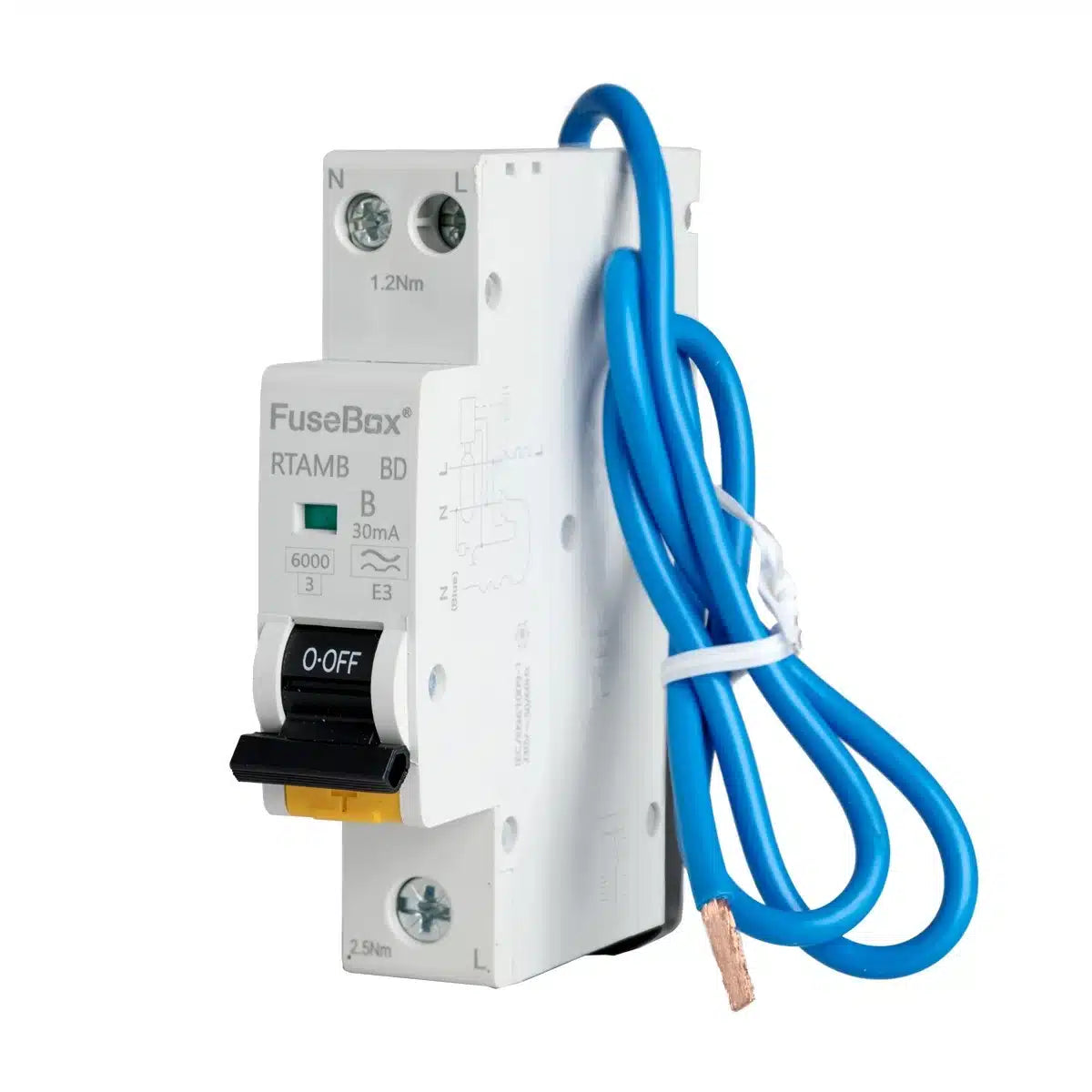

Mini 10A B RCBO 1P Plus N SW 30mA 6kA Type A Bi Directional Circuit Breaker Compact Space Saving Unit

The MINI 10A B RCBO 1P+N (SW) 30mA 6kA TYPE A BI-DIRECTIONAL is a compact protective device that combines overload protection with earth-leakage protection for single-phase circuits. It’s ideal for space-saving consumer units and small distribution boards where reliable protection matters.

• Rated Current: 10A, 1P+N configuration with an integrated ON/OFF switch for easy control
• Tripping Curve: B-type overcurrent protection for responsive protection on common residential and light commercial loads
• Residual Current Rating: 30mA leakage protection to help prevent electric shock
• Breaking Capacity: 6kA withstand rating to safely interrupt fault currents
• Protection Type: Type A residual current detection (AC plus pulsating DC components) for modern electronics
• Bi-Directional Installation: Flexible wiring orientation to simplify panel layouts
• Compact Form Factor: MINI-sized design optimized for tight spaces in small panels
• Applications: Ideal for single-phase circuits in residential or light commercial consumer units needing combined RCBO protection

This RCBO delivers integrated protection against both leakage faults and overcurrents, helping to prevent electric shock and protect wiring. The 30mA sensitivity is well-suited for living spaces and offices, while the 6kA capacity handles typical fault scenarios in home panels. Type A detection covers circuits with AC and pulsating DC loads, such as modern electronics and switch-mode power supplies, reducing nuisance trips. The built-in switch and compact size streamline installation and daily operation, making it a practical choice for new builds and panel upgrades.
