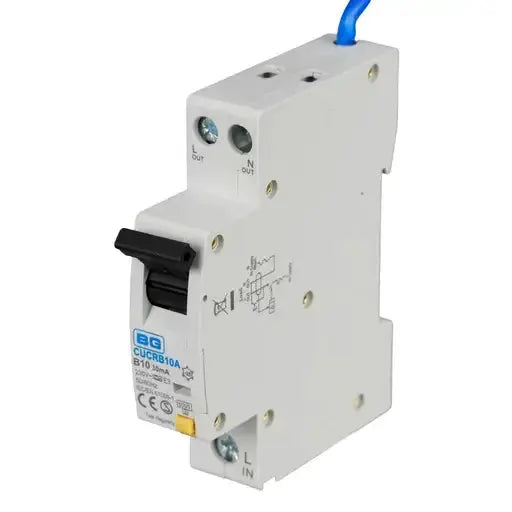

BG 10A 1 Module RCBO 1P+N 30mA Type A 6kA B Curve Compact

Features

* Stylish modern profile
* Allows for maximum usage of cable space within consumer unit
* Positive contact status indicator
* Lockable dolly switch
* Matches all other BG devices

Downloads

* [BG CUCRB10A Datasheet](https://assets.cef.co.uk/downloads/pdg/bg_cucrb10a_datasheet/bg_cucrb10a_datasheet.pdf)
Spotted a Mistake

Specifications

All images and text, © Copyright City Electrical Factors Ltd
:
All images and text, © Copyright City Electrical Factors Ltd

Brand
:
BG

Current Rating
:
10A

Depth
:
76mm

Dimensions
:
(H)93 mm x (W)17.5 mm x (D)76 mm

Guarantee
:
10 Years

Height
:
93mm

Incoming Terminal Capacity
:
16mm²

Mounting
:
DIN Rail

Number of Modules
:
1

Number of Poles
:
Single Pole and Neutral

Outgoing Terminal Capacity
:
16mm²

Packaging Types
:
Each

Rcd Type
:
A

Short Circuit Rating
:
6kA

Standards
:
EN IEC 61009

Tripping Characteristics
:
B Curve

Tripping Sensitivity
:
30mA

Unspsc V18
:
39121601

Unspsc V24
:
39121601

Voltage Rating
:
230V

Weight
:
0.22900kg

Width
:
17.5mm
